RedEdge-P™ Dual Camera System

INTEGRATION GUIDE




Table of Contents



Thank you for your purchase!        1

Firmware update required!        1

What’s needed for the integration?        2

What’s Required?        3

Let’s get started!        3

Attaching DLS 2 mast assembly        3

Attaching DLS2 mast to an Inspire 2  3

Attaching DLS2 mast to an M100 or M600 series  4

Attaching DLS2 mast to an M200 series  5

Attaching the RedEdge-P, RedEdge-P Blue and the Dual Camera Mount        7

Attaching the Dual Camera System and DLS 2 to the drone  7

Support        9



Thank you for your purchase!

These instructions show how to integrate the MicaSense RedEdge-P Red and RedEdge-P Blue with a DJI M100/M200/M300/M350/M600 series drones. It covers attaching mounting brackets included in the kit, powering the camera from the host system, and placement of the Downwelling Light Sensor (DLS 2) unit.

Warning: This kit is not intended for any other RedEdge models other than the RedEdge-P. Damage will occur if any other RedEdge model is connected.

Firmware update required!

Both the RedEdge-P Red and RedEdge-P Blue need to be updated to the latest firmware. The system will not operate if the firmware versions do not match. You can find the latest firmware available on the MicaSense Camera Firmware Download Page.

Instructions for updating the firmware can be found here: How to update your firmware.

What’s needed for the integration?

  1. Dual REP Camera System Mount (Qty 1)
  2. 6-pin 60cm cable (Qty 2)
  3. Dual REP Camera System Cable (Qty 2)
  4. M3 X 10mm Screws (Qty 6)
  5. M3 Flat Nylon Washers (6)
  6. M3 Lock Washers (Qty 6)Contents.png
  7. Loctite threadlocker (Qty 1)
  8. Zip Ties (Qty 6)
  9. DLS 2 mounting screws (Varies depending on drone model)
  10. DLS 2 Mounting plate (Qty 1)

(Varies depending on Drone model)

Images shown are not in scale

Notes:

  • Kit content may differ as hardware may already be installed.
  • Dual camera configuration requires the use of a DLS 2
  • DJI Z30 adapter is needed for this kit to be compatible with the Matrice 100 and 600 Series drones.  (not provided by MicaSense).

What’s Required?

  • #1 Phillips Screwdriver

  • Cutting tool - such as scissors or diagonal cutter

  • 1.5 mm hex wrench

  • 2 mm hex wrench

  • 2.5 mm hex wrench

Notes: Tools included in your kit may vary depending on drone model selected when kit was purchased.

Let’s get started!

Warning: Installation of this kit into a drone should be done by an experienced person, in adherence with all recommendations and guidelines of the drone manufacturer. Before assembling this kit, ensure the drone is not powered, has the battery removed, and the rotor blades removed. Failure to follow these instructions can result in injury or death of the user, and/or damage to the aircraft, camera system, or both.

MicaSense recommends checking all fasteners periodically and tighten as needed.

Both the RedEdge-P Red and RedEdge-P Blue need to be updated to the latest firmware. You can find the latest firmware available on the MicaSense Camera Firmware Download Page.

Instructions for updating the firmware can be found here: How to update your firmware.

Attaching DLS 2 mast assembly

The DLS 2 should always be the highest object on the aircraft to avoid shadows or reflections. It contains an integral GPS sensor that may be utilised for geotagging of the imagery if system GPS signals are not provided to the sensor by other means. Install the module where it will have a clear view of the sky, far away from any devices that could interfere with GPS signals (like a data link or video transmitters).


When the DLS 2 starts up, it attempts to calibrate, which requires it to be still and motionless. Ensure that there is no vibration or movement until the DLS 2 has completed this procedure, indicated by normal LED status lights (shown in the User Guide for MicaSense Sensors).

Attaching DLS2 mast to an Inspire 2

  1. Mount the DLS 2 unit on top of the mast using the provided M2 X 8 (Qty 2) screws.
  2. Using the appropriate Allen key, remove the two M2.5 screws from the drone to install DLS2 mounting plate (see image below)
  3. Secure the mast to the top of the Inspire 2 using the provided M2.5 X 16 (Qty 2) screws making sure the DLS 2 connector is oriented toward the front of the drone.
  4. Use zip ties to secure any loose wires.

DLS 2 mounted on Inspire 2

Warning: Failure to properly secure loose wires may lead to interference with the aircraft propellers. This may damage the Inspire, RedEdge-P, or both.

Attaching DLS2 mast to a M100 or M600 series

  1. Locate and remove the DJI mast kit from its packaging.
  2. There are three carbon rod sizes. Choose the longest and insert it into the base mount.
  3. Secure the base mount with the included M2 screw.
  4. Place the top cap on the other side of the carbon rod.
  5. Secure the top cap on the rod by screwing the M2 screw.
  6. Screw in the base of the mast assembly into the aircraft frame using the provided M2.5 screws and mating cap.
  7. Secure the DLS2 mounting disc to the mast using the provided M2.5 x 4mm screws.
  8. Mount the DLS2 to the DLS2 mounting disc using the provided M2 x 6mm screws.
  9. Ensure the DLS 2 connector is oriented toward the front of the drone.
  10. Use zip ties to secure any loose wires.

DLS2 Mounted on Matrice 100

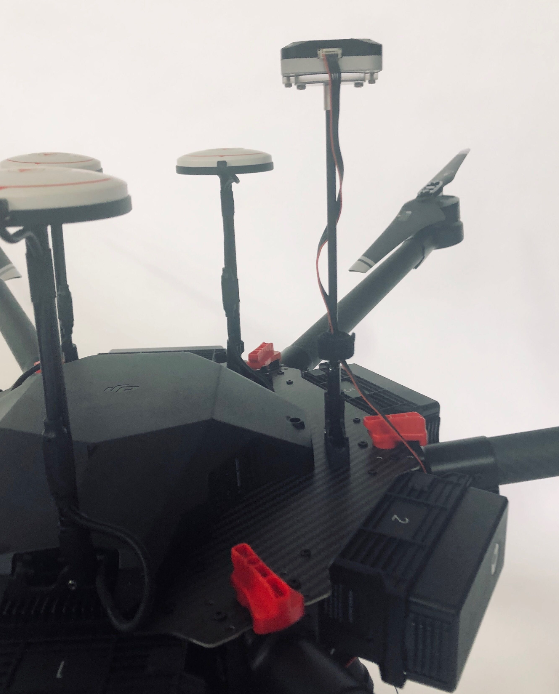

DLS2 Mounted on a Matrice 600Pro

Warning: Failure to properly secure loose wires may lead to interference with the aircraft propellers. This may damage the aircraft, camera system, or both.

Attaching the DLS2 mast to an M200 series

  1. Remove the left side drone leg holder. The mount should only be installed on the left side of the aircraft.
  2. Align the DLS2 mounting bracket behind the leg holder and re-attach the leg holder and the bracket to the drone using the provided M3, 8 mm BHC Screws (Qty 3) and applying loctite to the threads.
  3. Mount the DLS 2 unit on top of the mast using the provided M2 X 8 (Qty 2) screws and the M2 lock washer (Qty 2). Make sure the DLS2 connector is oriented toward the front of the drone.

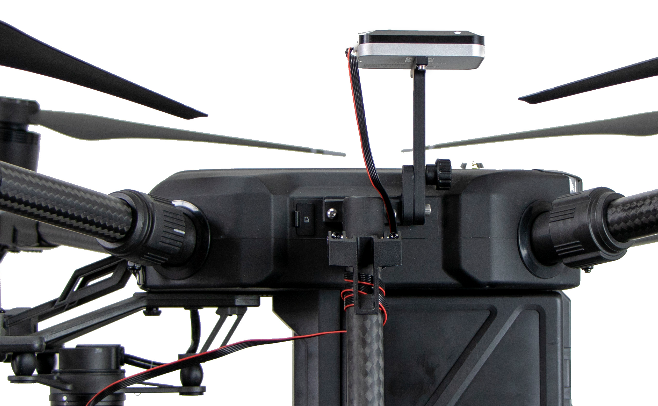

Showing DLS2 mast mounted on M200 with DLS2 connector facing forward and DLS2 mount on the left side of the drone (if looking from above)



IMPORTANT: The mount should only be installed on the left side of the aircraft. Do not install the mast on the right side of the aircraft as the propeller may pass too close to the mast causing instability of the DLS2 or contact with the mast.

Warning: Failure to properly secure loose wires may lead to interference with the aircraft propellers. This may damage the aircraft, camera system, or both.



Attaching the RedEdge-P Red, RedEdge-P Blue and the Dual Camera Mount




Note: The dual camera configuration requires the use of a DLS 2.

  1. Locate the M3 x 10 mm black-oxide screws, M3 lock washers, M3 flat nylon washers, and Dual Camera Mount.
  2. Using the screw holes, attach the mount to the back of both the RedEdge-P and the RedEdge-P Blue. Make sure the mount’s 8-pin camera port is located on the same side as the cameras “PWR/TRG” ports. Add a drop of loctite to the threads of the screws. The order of the components is:

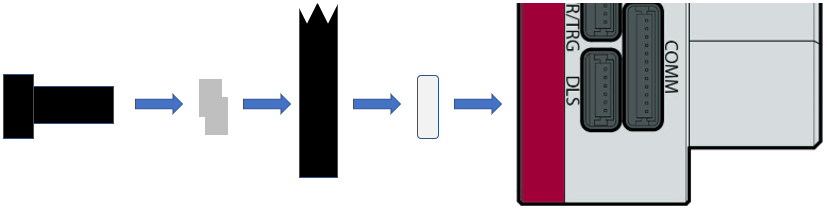

 Black-oxide screw → Lock Washer → Dual Cam Mount → Nylon Flat Washer → Camera

  1. The RedEdge-P Red camera should be in the front of the dual camera mount when the system is properly installed. Also, only one WIFI dongle should be installed in the Red camera and not in the Blue camera. The extra WIFI dongle should only be used for advanced configurations.
  2. Connect the provided Dual Camera System cable to connect the “PWR/TRG” and “DLS” ports on both cameras. The RedEdge-P Red camera should be the Main camera in the configuration. Connect the Main cables and connectors to and the RedEdge-P Red and the Auxiliary cables and connectors to the RedEdge-P Blue camera.


Connection between Dual Camera System Mount, RedEdge-P Red and RedEdge-P Blue

Attaching the Dual Camera System and DLS 2 to the drone

Once assembled, the Dual Camera Mount can quickly and easily be installed or removed from the drone. Power is provided by the drone via the Dual Camera Mount.

  1. Attach the assembled Dual Camera Mount (with connected RedEdge-P Red and RedEdge-P Blue) to the drone using the DJI lock mechanism on the drone.
  2. Use the provided 6-pin 60cm cable to connect the DLS2 and the camera sensors. Plug the DLS 2 cable from the DLS 2 port to the Dual Camera Mount “6-pin DLS” port.
  3. When attached, the cameras will be tilted forward slightly to compensate for the tilt of the aircraft while flying.

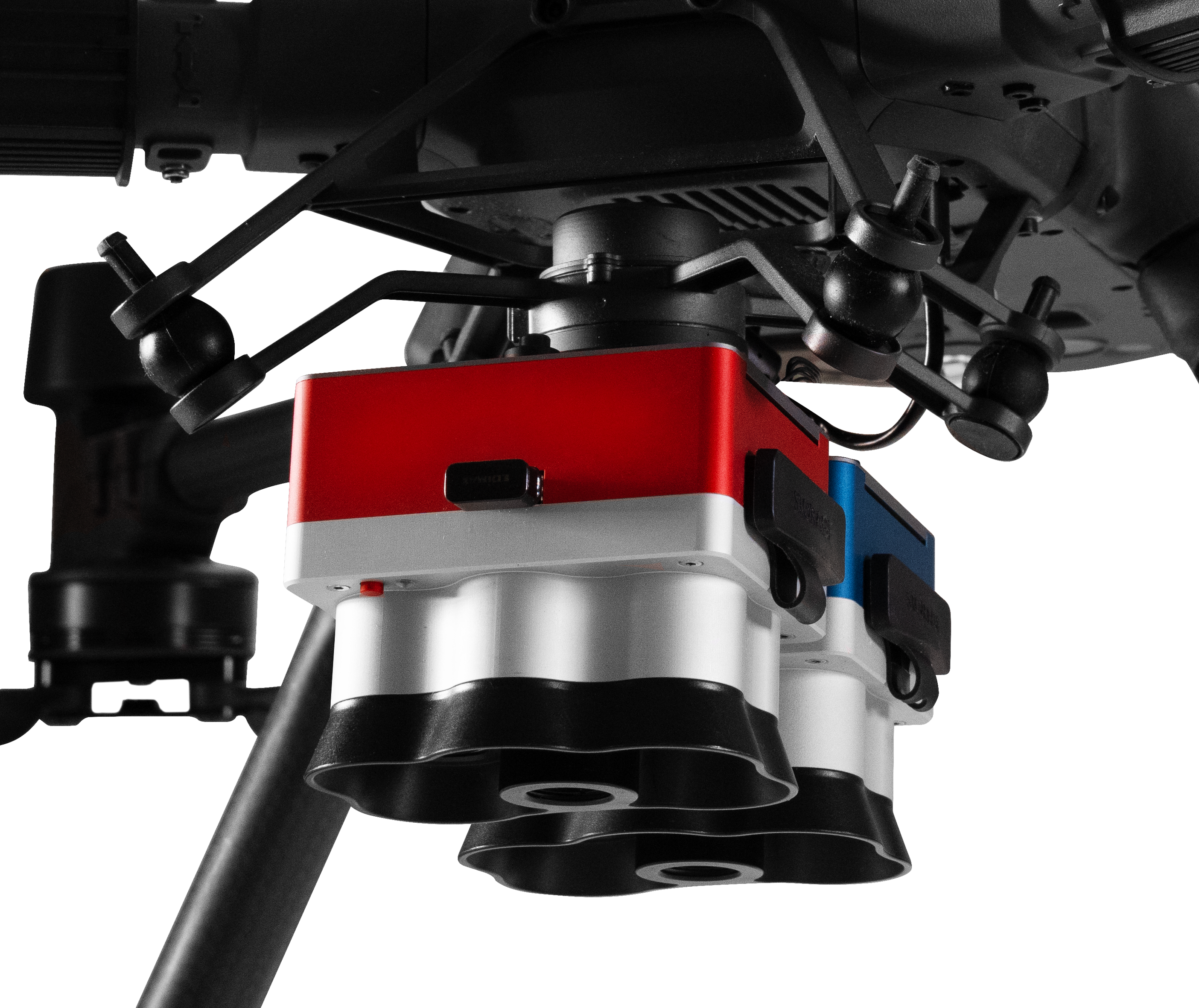

RedEdge-P Dual connected to DJI M300




Fully connected Dual Camera Configuration on a DJI M300

Warning: Failure to properly secure loose wires may lead to interference with the aircraft propellers. This may damage the aircraft, camera system, or both.

Support

For other RedEdge-P or Altum-PT associated integration guides, please visit our Knowledge Base at support.micasense.com

For additional questions, please contact support@micasense.com
